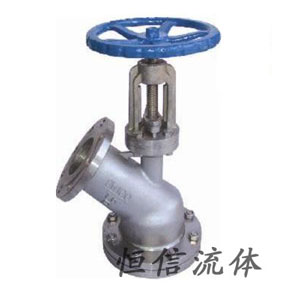

Put down feed valve

product description

Overview of the down - spread discharge valve

The lower expansion discharge valve body cavity is equipped with anti-erosion, anti-corrosion sealing ring, in the opening of the valve moment, can protect the valve body from medium erosion, corrosion, and special treatment of the sealing ring, so that the surface hardness reaches HRC56~62, with high wear resistance, corrosion resistance function. Disc seal is surfacing welded with hard alloy according to the need, the sealing pair adopts line seal to ensure the reliability of seal and prevent scarring. It is widely used in chemical industry, petroleum, metallurgy, pharmacy, pesticide, dye, food processing and other industries.

Performance parameters and USES of the downward spreading discharge valve

Working pressure: 1.6mpa

The working medium is water, oil liquid, acid base and so on

Operating temperature is <=175℃. Stainless steel <=320℃ carbon steel

Easy to operate, open freely, flexible and reliable movement; Disc assembly and maintenance is simple, sealing structure is reasonable, sealing ring replacement is convenient and practical.

Material of the main parts of the down - spreading discharge valve

Connecting dimension of down - spread discharge valveTop Flange
